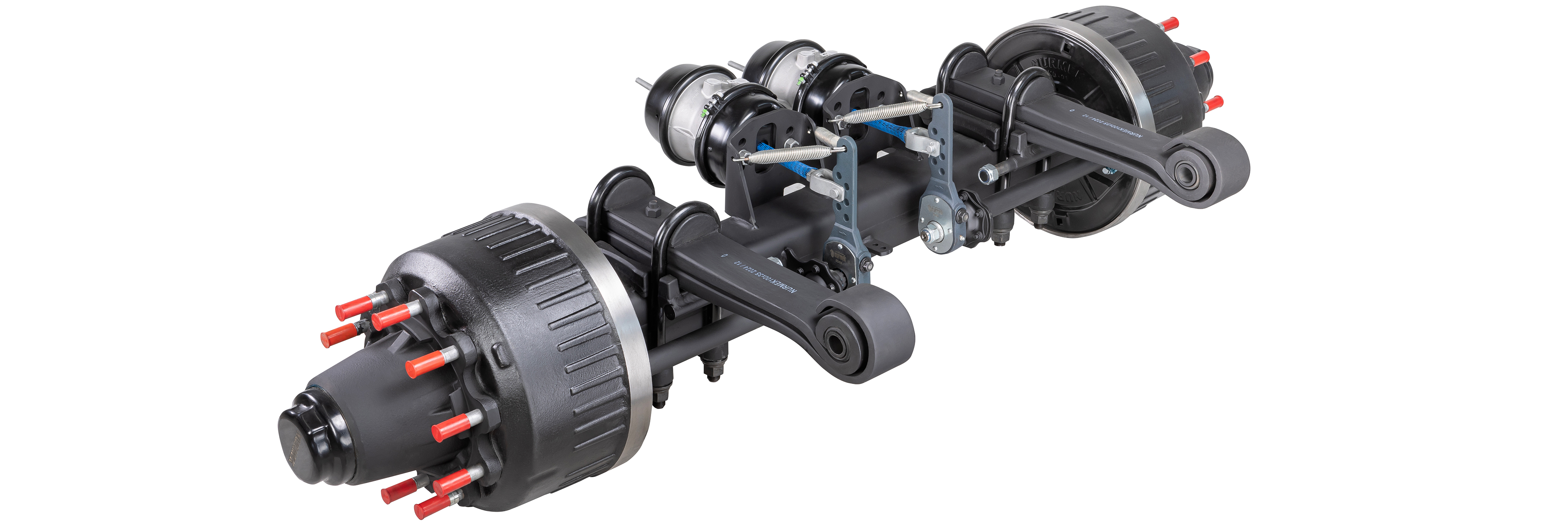

Double Tyre Drum Brake Type 9-20 Ton
Axle Load Capacity : 9 – 20 tons
Rim Size: 20” / 22.5” / 24”
Brake Type: with SB 4218 (Æ420x180), SB 4220 (Æ420x200), SB 4222 (Æ420x220), SB 4220 HD (Æ420x220) drum brake types
Wheel Connection: 10 stud (281/335 mm)
Axle Beam Section: 9 ton (120x12 mm), 12 ton (140x12 mm), 14-18 ton (140x15 mm), 20 ton (140x 18 mm)
